Description

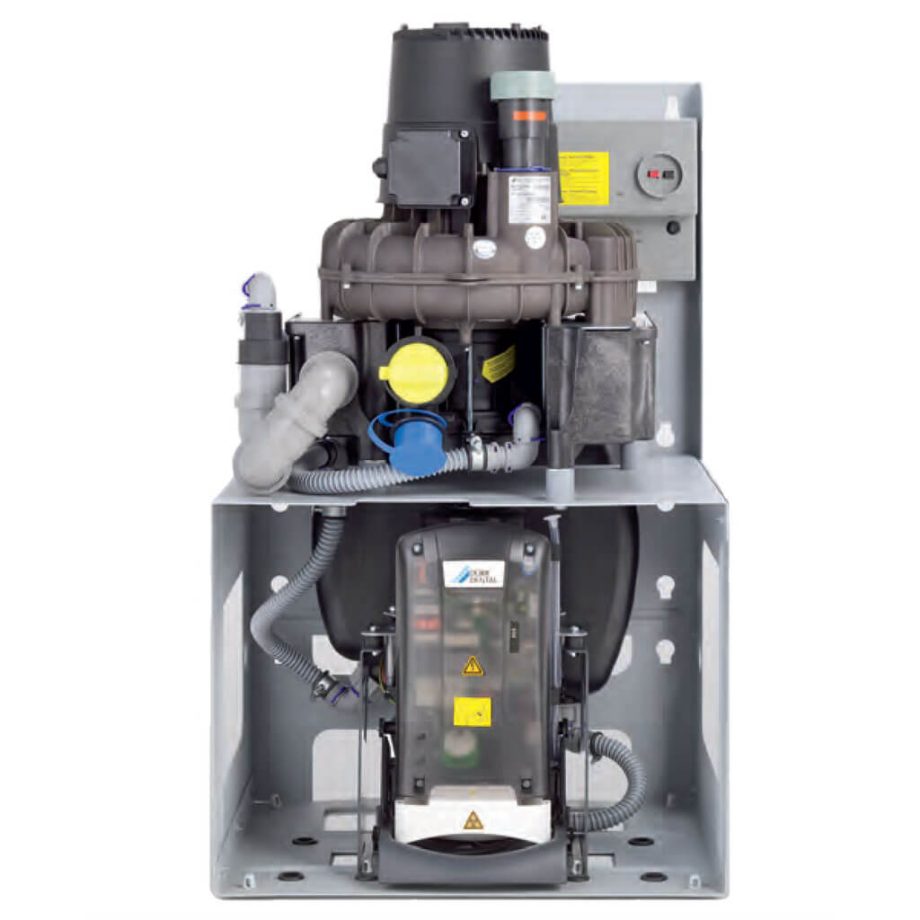

Durr VSA1200 with integrated amalgam separator – 4 surgery operation.
VSA1200 | |
Voltage (V) | 230 (3 phase) |
Frequency (Hz) | 50 |
Electrical output (kW) | 2 |
Current consumption (A) | 3.8 |
Vacuum mbar (hPa) | 170 |
Number of operators | 4 |
Number of rooms at 60% at the same time | 6 |
Max. Flow rate (l/min) | 24 |
Dimensions without housing (H x W x D cm) | 52x41x42 |
With housing (H x W x D cm) | 55x49x53 |
Weight without housing (kg) | 33 |
With housing (kg) | 52 |
Approx noise level without housing (dB) | 66 |
Approx noise level with housing (dB) | 59 |
Cost-effective and compact
In the case of VS Suction Units, aspiration and separation are combined centrally on one drive shaft. This is cost-effective and saves space.
Corrosion protection thanks to galvanic coating
The housing components and high-precision runners are made from coated aluminium or highly corrosion-resistant plastic.
Exceptionally quiet
The aerodynamic turbine wheels and integrated sound suppressors ensure low-noise operation.
Regulating and cooling
The integrated auxiliary air valve regulates the suction power and ensures sufficient internal cooling.
Integrated humidity protection
In order to protect against condensated water, all dry V suction units are fitted with a condensate separator.
